Robotic Arm Add-on Pack for Starter Robot Kit

Product Code
:
11558
Brand / Origin
:
Makeblock
Quantity
:
4
Without Vat
:
531.19 TL
Quantity:

-

+

Same Day Shipping
If you purchase before 3pm, your products will ship at the same day. Except saturday and sunday
Add to Favorites
You can add this product on your list and check it later.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box
  • Robotic Arm Set Add-on Robot Starter Kit

    You can use this robotic arm as a helper in your office or studio, on the table or anyhere you wish, by mounting it as an extra arm. You may also control the motors by adding some extra parts, by this way, you can use the robotic arm to hold the PCB or soldering iron when you are soldering your circuits or to do any other things. This features make is a very useful robotic arm.

    Features:

    • Compatible with Robot Starter Kit

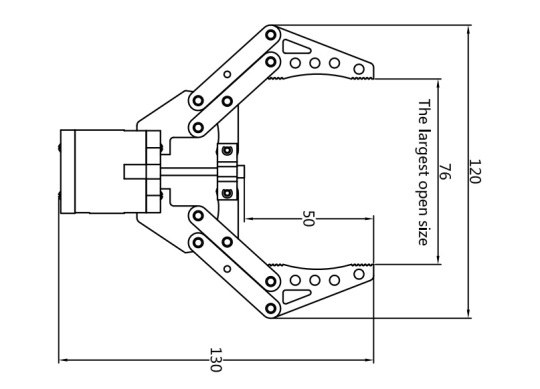

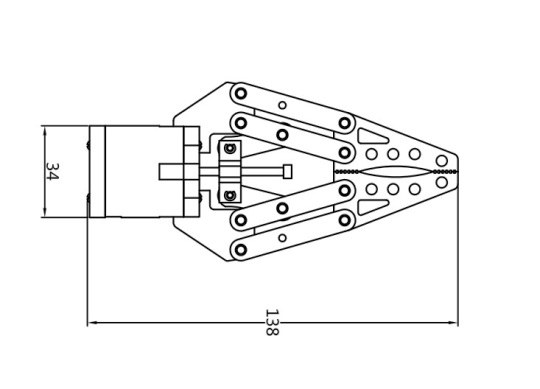

    • The gripper included in this pack is capable of opening an impressive 3" (67mm) wide.
    • Motor protection in fully open or fully close position

    Part List

    1 x Beam 0824-64 1 x Timing Pulley 90T 2 x Nylon lock Nut 4mm
    1 x Beam 0824-80 1 x Timing Belt 123T 4 x Countersunk Screw M3x8
    3 x Beam 0824-96 3 x Linear Motion Shaft D4x88mm 12 x Headless Set Screw M3x5
    3 x Beam 0808-168 8 x Shaft Collar 4mm 6 x Plastic Ring 4x7x2mm
    3 x Plate 3x6 1 x Flange Bearing 4x8x3mm 1 x Me Dual DC Motor Driver
    1 x DC Motor-37 Bracket B 16 x Socket Cap Screw M4x8 2 x 6P6C RJ25 cable-20cm
    1 x DC Motor-37 12V/50RPM 14 x Socket Cap Screw M4x14 1 x HEX Screwdriver 2.5mm
    1 x Strong Robot Gripper 6 x Socket Cap Screw M4x22 1 x HEX Allen Key 1.5mm
    1 x Timing Pulley18T 8 x Nut M4

    Documents:
