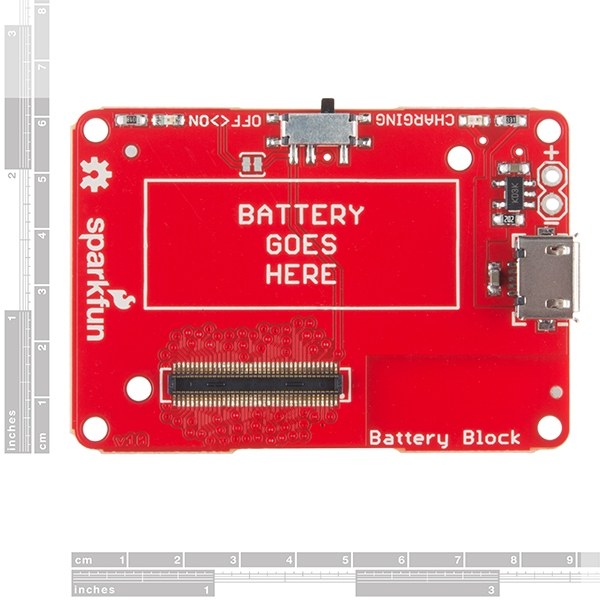

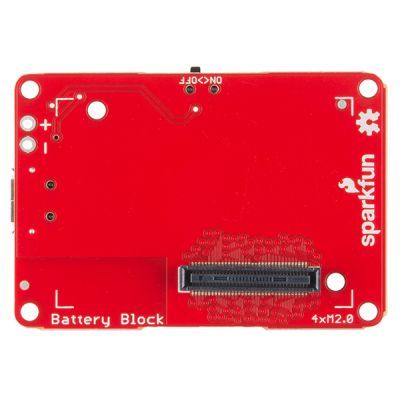

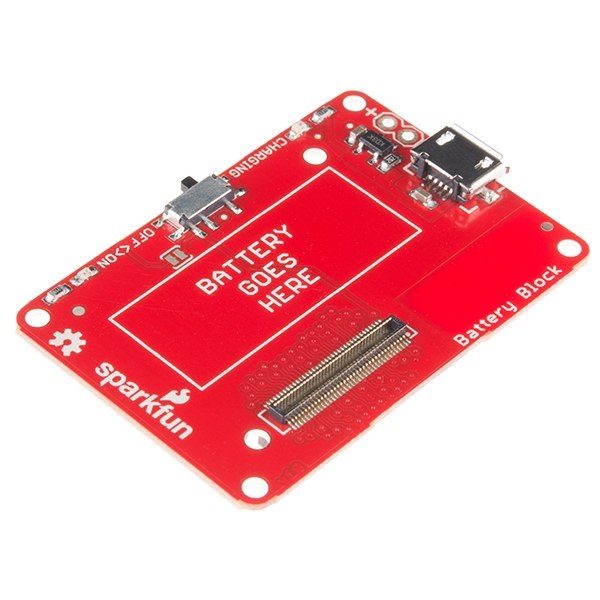

SparkFun Block for Intel® Edison - Power

This block, which is identical to the Battery block in every way except the battery itself, can be used with an external power source for your Edison which can be plugged in with a micro USB cable to deliver a 500mA charge current. This board provides you with the option of either not having to use a battery at all while still allowing you the choice to add your own 3.7V battery if you so choose. If you choose to not include a battery, the expansion header will remain exposed allowing you to continue stacking blocks..
