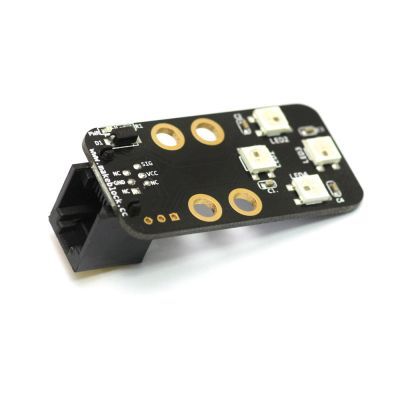

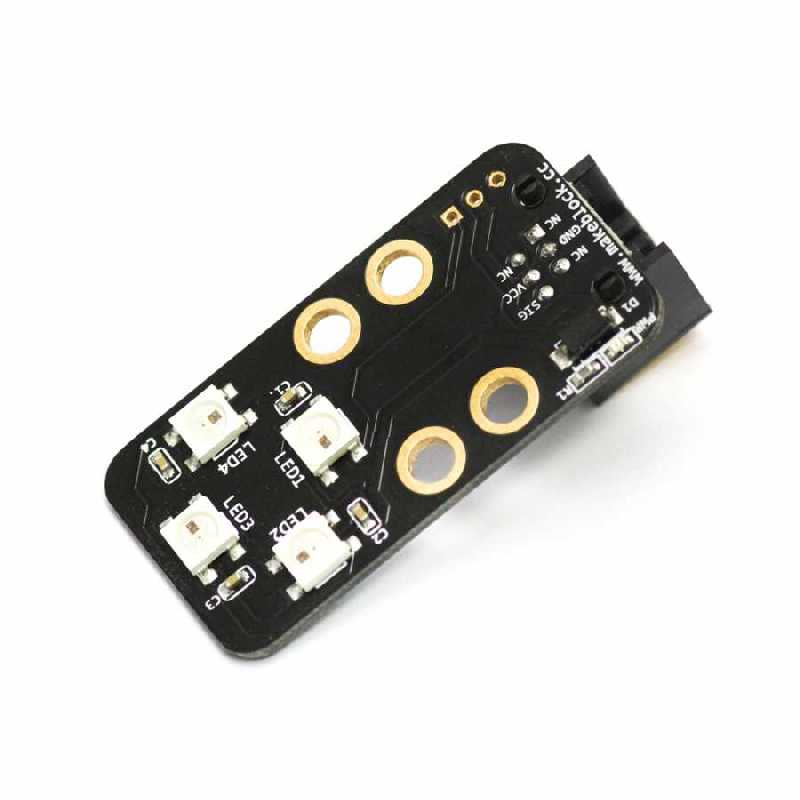

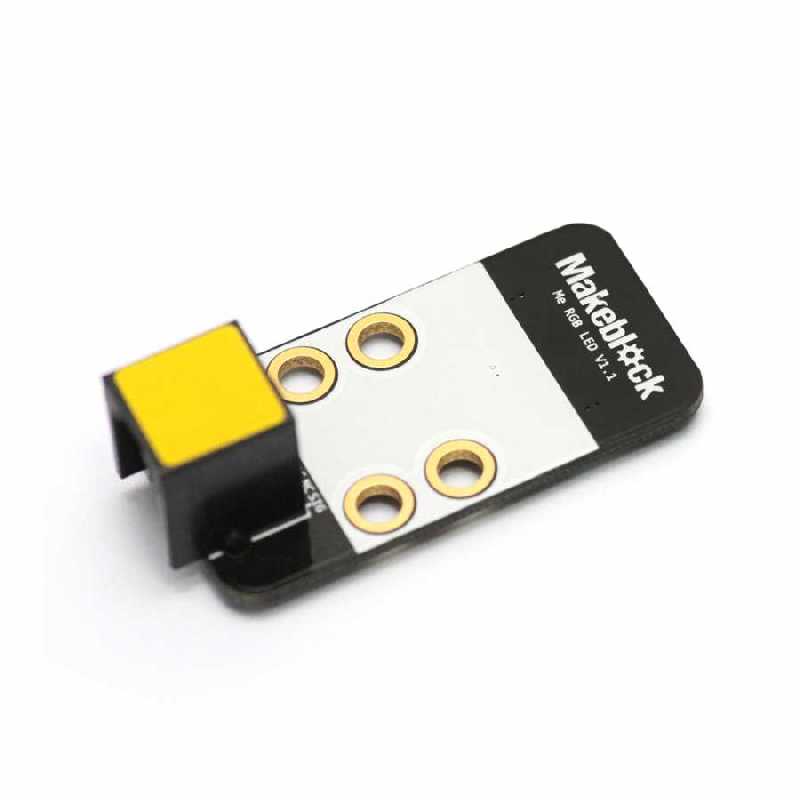

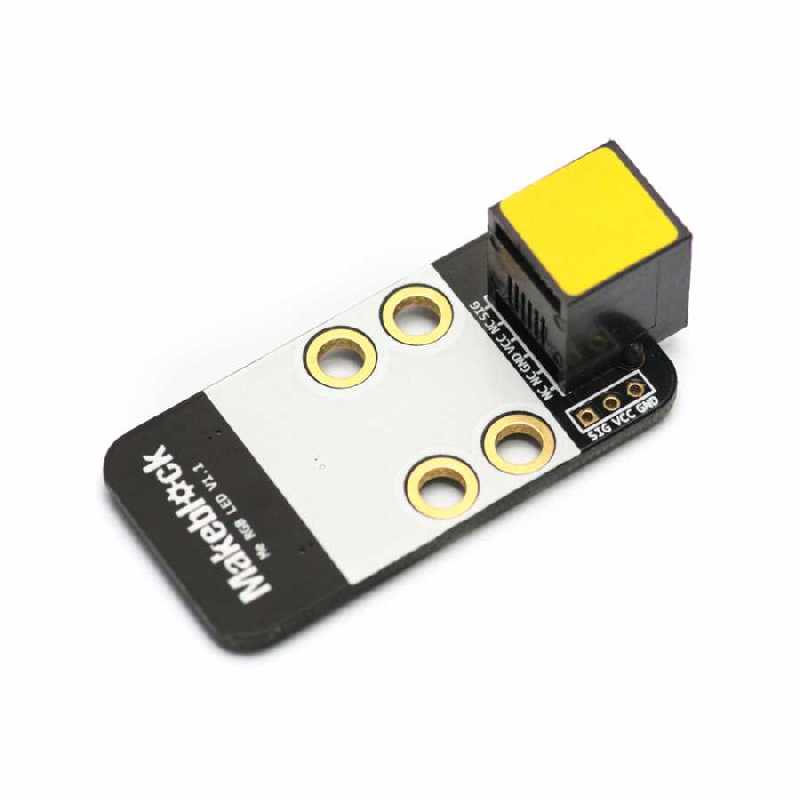

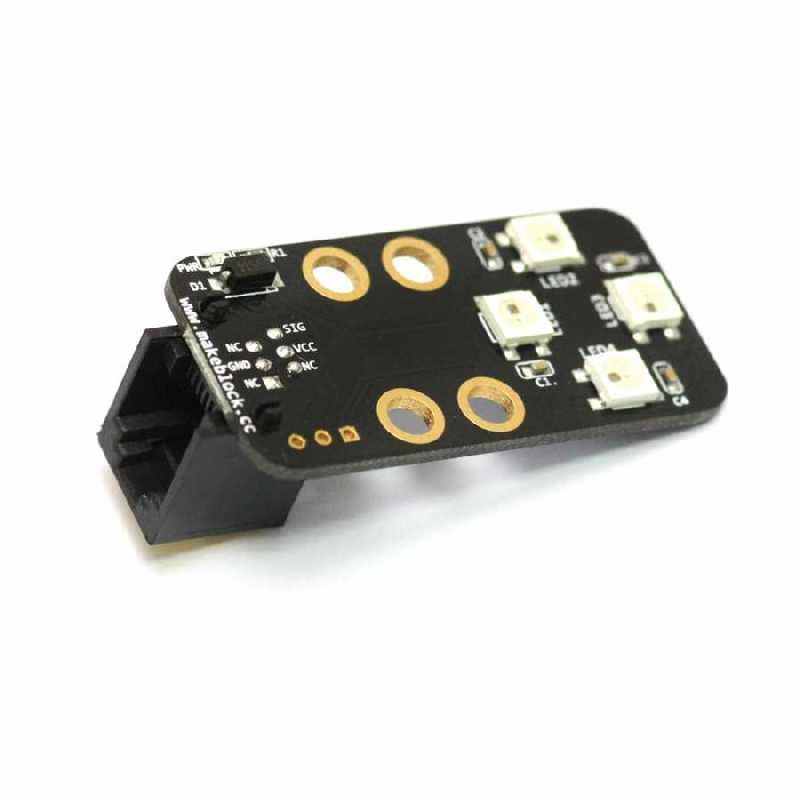

This board has 4 ws812 programmable RGB LED on it. Through this board, you can change colour and the brightness of each LEDs.
Features:
- 4 RGB LEDs which can be controlled seperately (ws2812)
- Internal fuse protects from over current.
- Through 16mm spaced M4 screw montage holes, compatible with Makeblock pieces
- Through 0.1" header connections can be used with jumpers.
- 6-pin RJ25 socket connections
- Operation Voltage: 5V
- Maximum current: 60mA for each LED, total 240mA
- Dimensions: 24x48x32 mm
