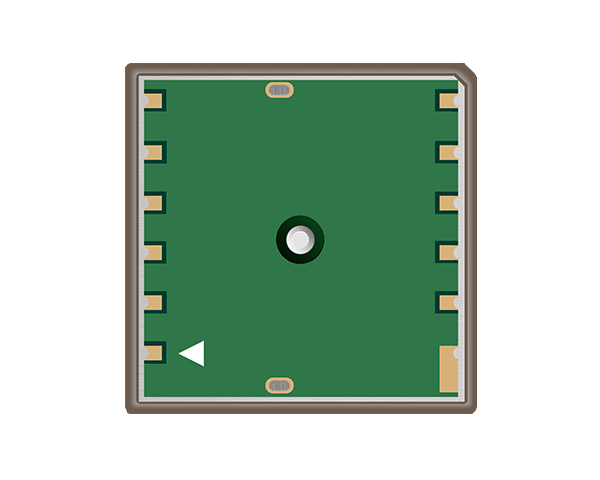

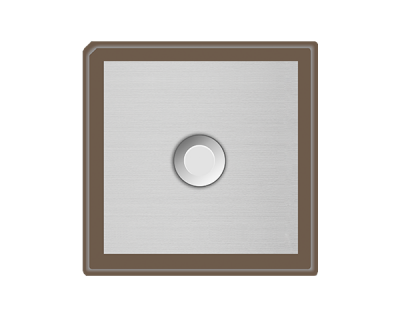

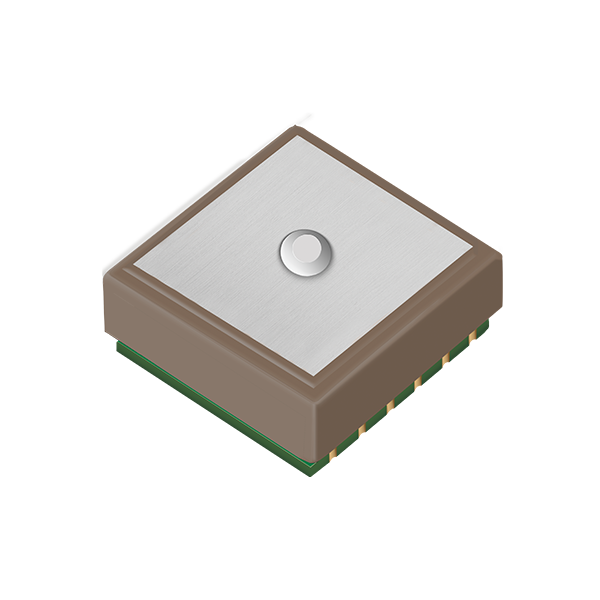

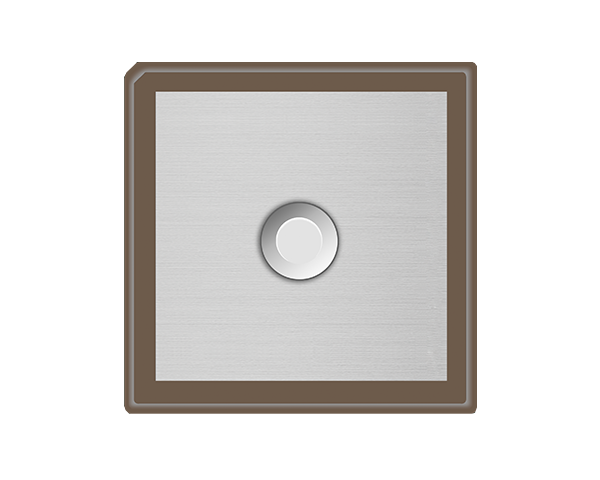

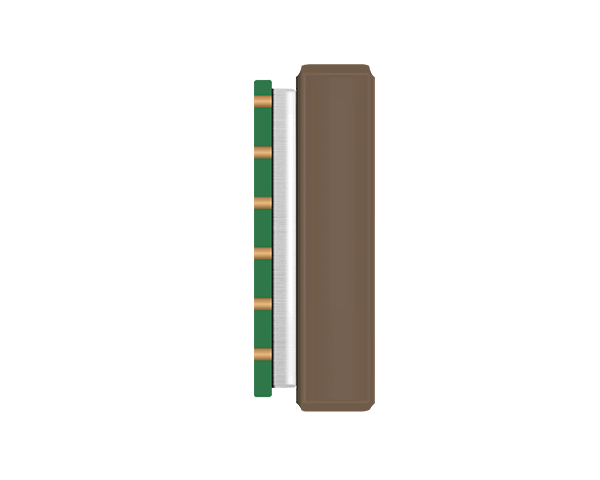

Quectel L86 GNSS Module with Antenna
  • Quectel L86 GNSS Module with Antenna
  • Quectel L86 GNSS Module with Antenna
  • Quectel L86 GNSS Module with Antenna
  • Quectel L86 GNSS Module with Antenna

Quectel L86 GNSS Module with Antenna

Product Code : 15098 Brand / Origin :  Quectel
Post Comment
Price: 13,30 USD
In Stock : 6
Quantity:
Add to Shopping List
This product rated 5/5 based on 1 customer reviews.


L86 is an ultra compact GNSS POT (Patch on Top) module with an embedded 18.4 × 18.4 × 4.0mm patch antenna and utilizes the MediaTek new generation GNSS chipset MT3333 that achieves the perfect peorformance. Designed to be compatible with Quectel GPS L80 module In the compact and unified form factor, it provides a flexible and scalable platform for migrating from GPS to GNSS. This saving-space design makes L86 a perfect module for miniature devices. Adopted by LCC package and integrating patch antenna, L86 has exceptional performance both in acquisition and tracking.

Combining advanced AGPS called EASY™ (Embedded Assist System) and proven AlwaysLocate™ technology, L86 achieves the highest performance and fully meets the industrial standard. EASY™ technology ensures L86 can calculate and predict orbits automatically using the ephemeris data (up to 3 days) stored in internal flash memory, so L86 can fix position quickly even at indoor signal levels with low power consumption. With AlwaysLocate™ technology, L86 can adaptively adjust the on/off time to achieve balance between positioning accuracy and power consumption according to the environmental and motion conditions.

L86 supports automatic antenna switching function. It can achieve the switching between internal patch antenna and external active antenna. Moreover, it keeps positioning during the switching process.

Due to its compact design, high precision and sensitivity, L86 is perfectly suitable for a broad range of M2M applications such as portable device, automotive, personal tracking, security and industrial PDA. It is especially suitable for special applications, like GPS mouse and OBD.

Features

Multi-GNSS engine for GPS, GLONASS, and QZSS

Embedded patch antenna: 18.4 x 18.4 x 4.0mm

● Compact size: 16.0 x 16.0 x 6.45mm

Automatic antenna switching function

Support short circuit protection and antenna detection

Built-in LNA for better sensitivity

EASY™, advanced AGPS technology without external memory

Ultra low power consumption in tracking mode, 26mA

AlwaysLocate™, an intelligent controller of periodic mode

LOCUS, embedded logger function without the need of host and external flash

High sensitivity: -167dBm@Tracking, -149dBm@Acquisition

99 acquisition channels, 33 tracking channels

● Balloon mode, for high altitude up to 80km

Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)

Great anti-jamming performance due to multi-tone active interference canceller

PPS VS. NMEA can be used in time service

● Support SDK command developed by Quectel

You can visit the producting company's web page for detailed information.
